Cheap price horizontal directional drilling rig machine 210KN HDD drilling rig machine

FOB Reference Price:Get Latest Price
$46,000.00 - $56,000.00 / Sets | 1 Set/Sets (Min. Order)
Brand Name:
WS
Model Number:
WS-21T
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 5 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
horizontal directional drilling machine
Engine:
Cummins
Type:
Rack & Pinion
Power:
110 KW/2200rpm
Thrust Pullback Capacity:
210 KN
Speed of Head:
30m/min
Weight:
7500 Kgs
Dimension:
L5800xW2250xH2300mm
Size of Drill Pipe:
60*3000 mm
Warranty:
1 Year or 2000 Hours
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude & Carton & Steel Box in Container
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 5 5 To be negotiated
Video Description
Product Description

With high strength rubber track chassis. Power station and the intergrated structure of drilling rig, mobile convenience, mobility. Rig power selection CUMMINS diesel engine, power. Stable and reliable performance. Power head is driven by double motors, and the rotation is smooth and torque is large. The power head is provided with a shackle to floating mechanism. To reduce the wear and tear of the drill pipe,the operation is simple and reliable. The random hydraulic pipeline is concentrated in the protection sleeve, which improves the service life of the pipe line. Convenient angle adjustment cylinder, adjusting the angle of incidence is flexible.  Double clamp screw unloading drill rod , high efficiency. Fully hydraulic drive, centralized control, easy opration, flexible.

SPECIFICATIONS FOR WS-21T HDD DRILLING MACHINES
Engine Model
CUMMINS
Engine Type
Turbo-charging, 4 strokes, 6 cylinders water cooling
Engine Rate Power
110KW/2200rpm
Size of Drill Pipe
60 *3000 mm
Pullback Capacity
210 KN
Max Flow Rate of Mud Pump
240 L/min
Thrust Capacity
210 KN
Max Pressure of Mud Pump
8 Mpa
Spindle Torque(max)
6500 N.m
Operating Weight
7500 Kgs
Spindle Speed
0-200r/min
Overall Size(L×W×H)
5800×2250×2300mm
Incidence Angle
8-20°
Speed of Head
30 m/min

Front view

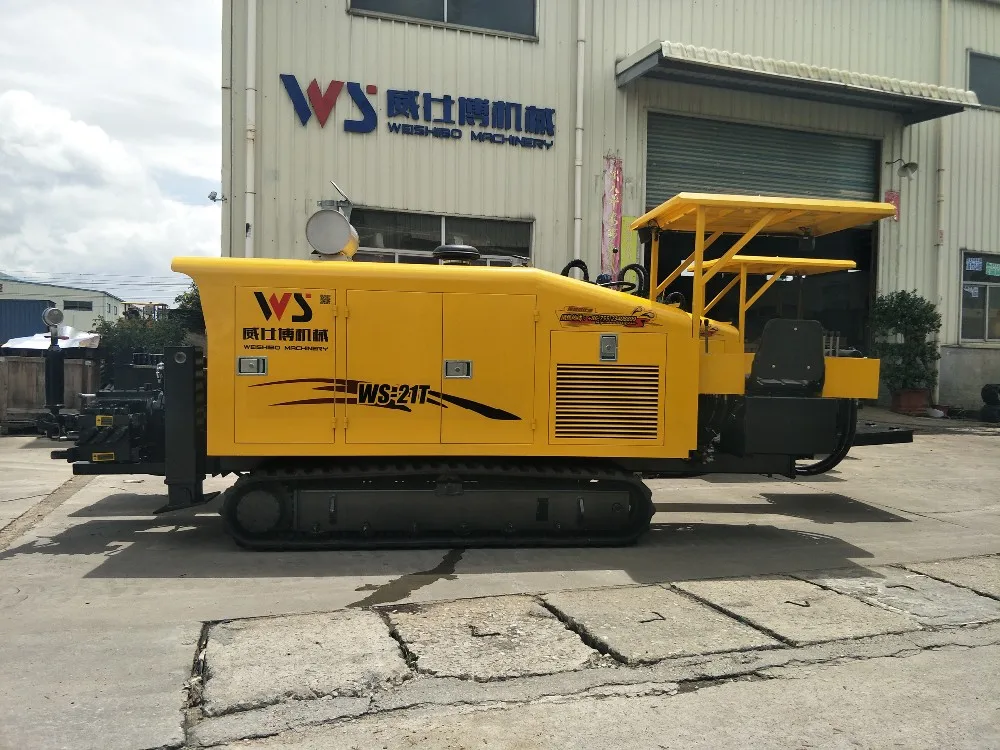

Back view

Operate table with a sunshade frame

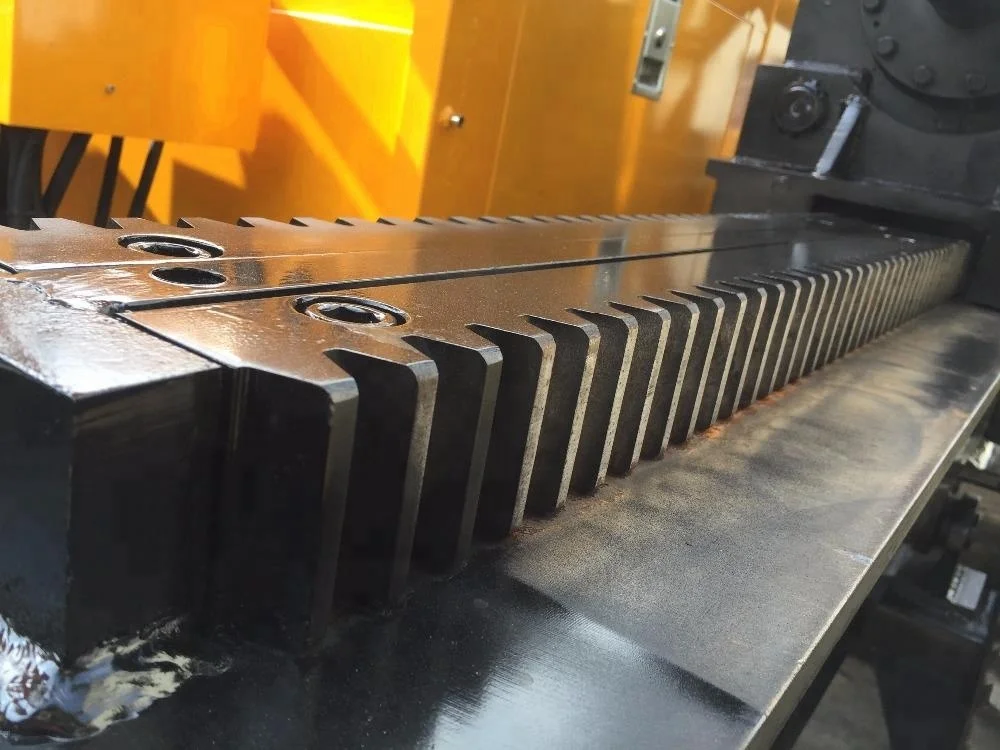

Rack & Pinion to help finish the job convenience and efficently.

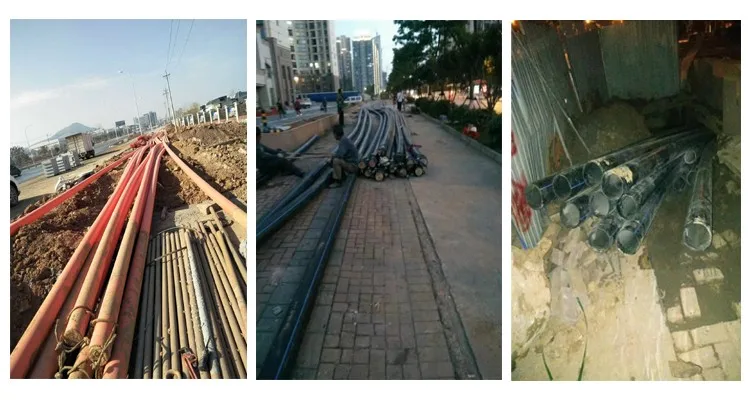

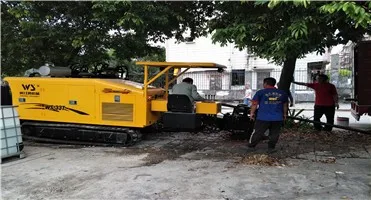

JOBSITE

Detailed Images

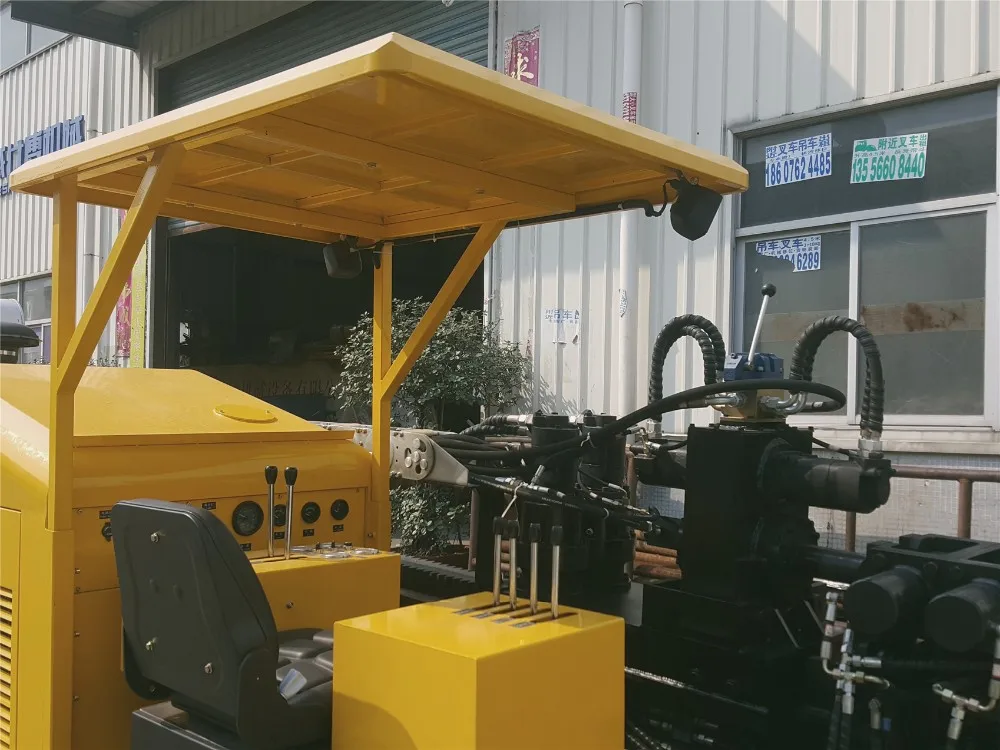

Operating table


Adopts man-machine design and with a sunshade frame,it provide a comfortable operation.

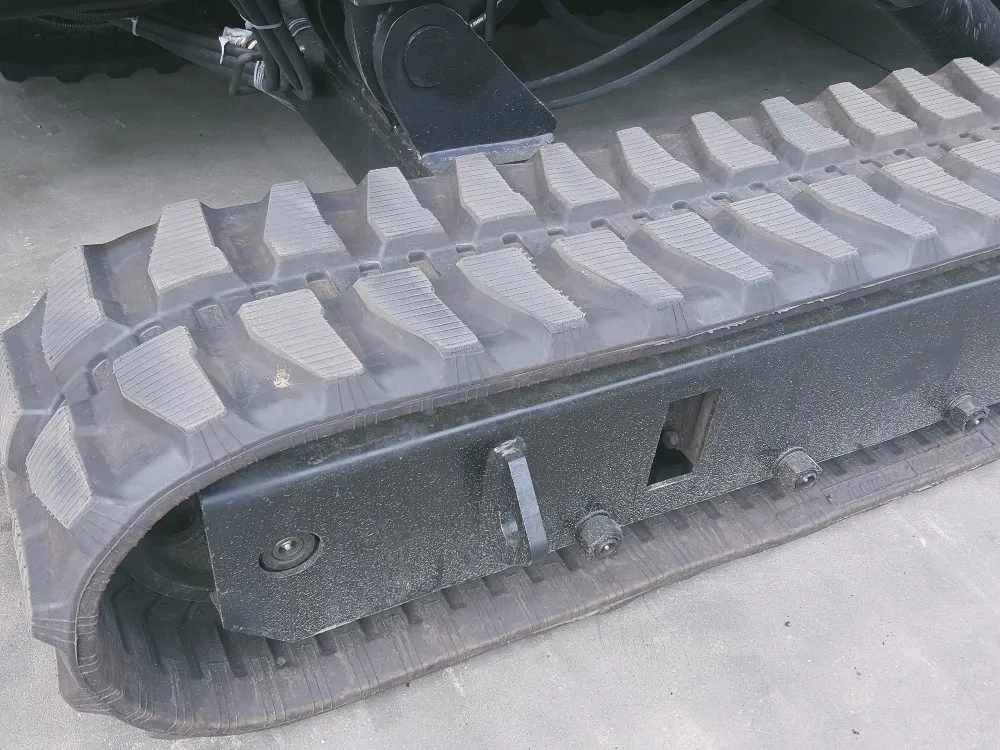

Rubber track


Does not damage the road, more suitable for downtown construction.

Clamp


Opening design clamp could be observed directly and make drill pipe changing easier.

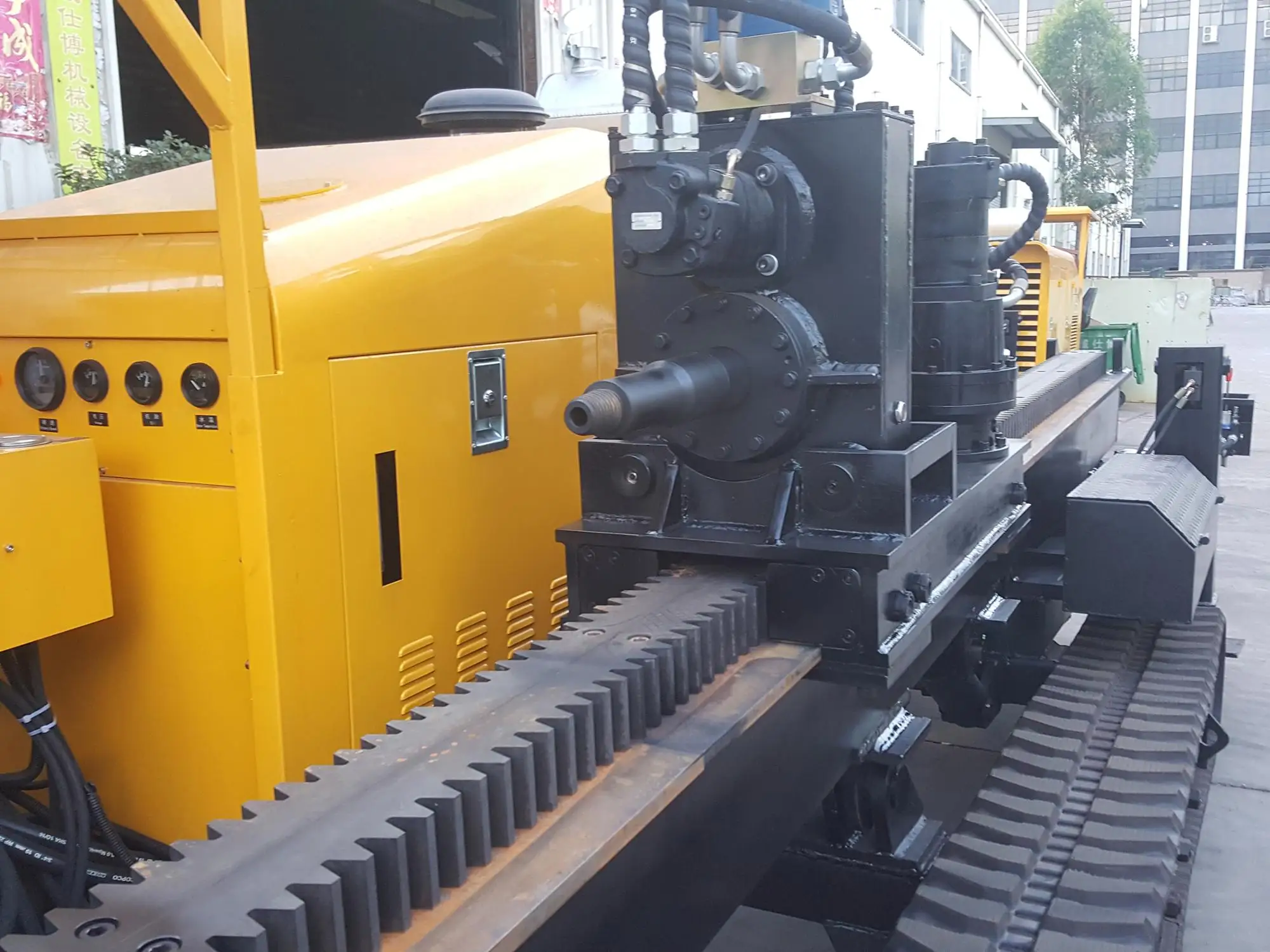

Power head


Rack and pinion system with fast/slow speed, can provide stable and powerful force.


Our Company

Factory

Our factory is in Shenzhen located in the beautiful and  rich city Shenzhen, is the first special economic zone established since the reform and opening up Chinese.

Workshop

Specializing in the production of Ws series of horizontal directional drilling machine, WS series horizontal spiral pipe jacking machine and other no-dig machine.

Warehouse

Sufficient accessories to meet daily production and after-sales service.

Technical team and after-sales team

WS has a group of experienced engineering and technical personnel and a strong sense of responsibility and perfect quality assurance system, production of the most professional technology, the most complete products, product performance and quality.

Sales team

Young, enthusiastic, positive.

Advantage & Service

Advantage

Who we are

Focus on horizontal directional drilling machine research and development, manufacturing for 10 years, continue to create value for customers

Provide guidance to customers

* Product use training

* Maintenance technical guidance
* Jobsite guidance

Our Service

Provide you with pre-sale, sale, after-sale one-stop service.

Pre-Sales Service


* Inquiry and consulting support.

* View our Factory.

* English speaking service available 24*7.



* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty for 1 year, free parts are available by sea or by air
* Tranining service in factory China or at job site oversea is available
* Customerize of special request of modify is available


Certifications
Packing & Delivery

For container shipment (FCL), 1*40 GP container can contain one machine, 100 pieces drill rod, 3m³ water tank, and other parts you request.

Big machine, we will use 40 FR

Railway carriage, for small machine, we can used a container otherwise we use a wagon.

For CFS shipment, usually ues pallets, plywood cases or framed.

For truck, we will tie up.

FAQ

Q1. What payment terms can be accept?

       Normally we can work on T/T and L/C.
       - T/T term, 100% should be paid before delivery.
       - L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q2. Which INCOTERMS 2010 terms can we work?
       We can handle all INCOTERMS 2010 terms, and we normally work on EXW, FOB, CIF.

Q3. How long is the production cycle?
       We will keep 3 sets of stocks for hot sales, and other models will ship within 10 days after receiving           the payment.

Q4. What logistics ways we can work for shipment?
       - Most of our shipment will go by sea to all main continents such as South America, , Oceania,                     Europe and  Middle East Africa etc., either by container or roro/bull shipment.
       - Neighborhood countries of China, such as Mongilia, Kazakhstan, Russia, Uzbekistan etc., we can             sent by trucks by road or sent container by railway.

Q5. How about the after service?
         We are offering one year warranty service, during the warranty period, anything regarding the quality         issuses will be handled by us, and expenses will be borned by us only. If you have anything doubt of         machine or project during the warranty period, we can send our engineer to your job site for training           your opeartor for the machine and also offer guidance during the construction job. The expenses is           on our account.

Q6. If I want to buy locating system, how you sent it?
       - ship together with the machine in container by sea
       - sent by DHL, the freight can be negotiated
